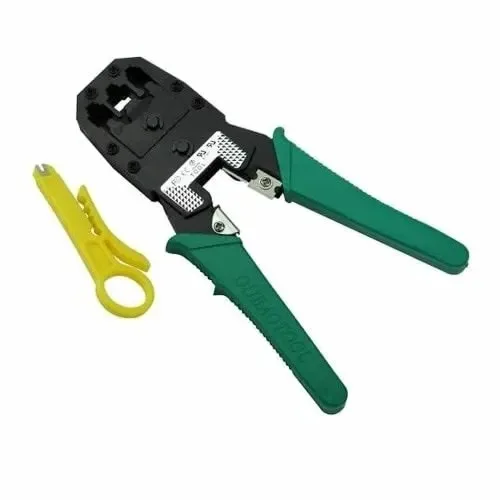

OB-318 Crimping Tool

The OB-318 Crimping Tool enables precise wire termination for network and electrical installations. For instance, this ratchet-style tool crimps RJ45, RJ11, and RJ12 connectors reliably.

Detailed Use Cases

Network Cable Assembly

IT technicians crimp Ethernet cables for office LAN setups. It ensures secure connections for data transmission without signal loss. Thus, it’s ideal for deploying structured wiring systems.

Telephone Line Terminations

Communication installers prepare RJ11 plugs for VoIP handsets. As a result, it creates durable terminations for voice circuits. Therefore, it supports telecom infrastructure effectively.

Home Automation Wiring

Homeowners connect smart device cables using this tool’s precision. Specifically, it handles Cat5e and Cat6 wires for IoT networks. Hence, it’s perfect for residential smart homes.

Field Service Repairs

Maintenance crews terminate patch cables during on-site fixes. Because of its compact design, it fits in toolkits easily. Moreover, it accelerates troubleshooting in remote locations.

Compatibility Options

This tool crimps 8P8C RJ45 for Cat6, 6P6C RJ11, and 4P4C RJ12. It accommodates 22-28 AWG wires. Works with cables from our computer accessories category. Similarly, it pairs with testers from our networking category. For crimping standards, explore TIA’s connector guidelines.

Technical Specifications

Tool Mechanism

• Type: Ratchet crimping plier
• Capacity: RJ45/8P8C, RJ11/6P6C, RJ12/6P6C
• Wire Gauge: 22-28 AWG solid/stranded
• Ratchet: Self-adjusting release

Build Features

• Material: Hardened steel jaws, ABS handles
• Length: 190 mm for maneuverability
• Weight: 0.3 kg for portability
• Handle: Ergonomic non-slip grip

Performance Details

• Crimp Force: 750 kg pressure
• Cycle Life: 50,000+ operations
• Compliance: RoHS, CE certified
• Accessories: Spare blades optional

This OB-318 features parallel jaw action. Additionally, it includes a locator for precise positioning.

Enhance Your Cabling Precision

Reliable Termination Quality

This tool delivers uniform crimps for consistent connectivity. For example, it aligns pins perfectly in modular plugs. Consequently, it minimizes rework in installations. Learn about wire stripping from Cabling Installation & Maintenance. Moreover, it pairs with connectors from our computer accessories category for complete kits.

Ergonomic Operation Benefits

Technicians choose it for the ratchet’s controlled squeeze. Because it releases only after full crimp, it prevents under-crimping. Furthermore, the lightweight build reduces hand fatigue. As a result, productivity rises during long sessions.

Durable Field Performance

The steel construction withstands daily professional use. Therefore, it operates reliably in dusty job sites. In data centers, for instance, it terminates patch cords accurately. Additionally, pair it with testers from our networking category for verification. This tool fortifies cabling reliability.

User-Friendly Maintenance

Operators appreciate the replaceable jaws for extended life. Similarly, it requires minimal lubrication for smooth action. Routine blade inspections ensure precision. Thus, upkeep stays simple. In telecom towers, consequently, it prepares field cables proficiently.

Scalable Network Deployments

For large projects, it supports high-volume crimping without fatigue. Because of its compact size, it stores easily in bags. Moreover, the multi-connector die saves tool needs. This device elevates termination standards remarkably.
