Punch Down Tool

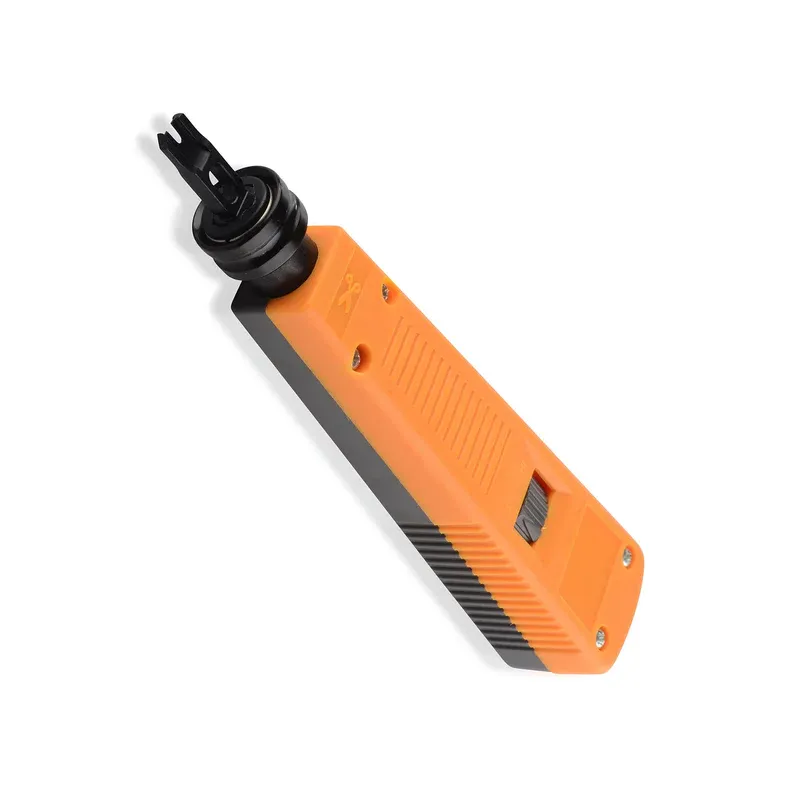

A Punch Down Tool is a specialized hand tool used in the installation of network cables, particularly for Cat5e, Cat6, and Cat6a cables, to securely terminate the individual wires into a punch-down block or keystone jack. The tool is primarily used by professionals in the networking and telecommunications industries to ensure proper cable connections and a stable network performance.

Key Features of Punch Down Tool:

1. Functionality:
   • The primary function of a punch down tool is to push the wires of a network cable into the grooves of a punch-down block or keystone jack, ensuring they are securely seated and making proper contact. This process is critical for creating a stable, reliable electrical connection that facilitates data transmission over the network.
2. Types of Punch Down Tools:
   • Manual Punch Down Tool: This basic tool requires the user to physically apply force to push the wire into place. It is most common for DIY or light use.
   • Impact Punch Down Tool: This tool provides additional force through a spring-loaded mechanism or impact action, allowing the user to make faster, more consistent connections, reducing the risk of damaging the cable or block.
   • Adjustable Punch Down Tool: Some models come with adjustable settings to control the amount of impact force used during the punch down process, helping to avoid damaging delicate wires or jacks.
3. Blades/Termination Heads:
   • Punch down tools typically feature replaceable blades that match the type of connection block being used. There are 110 and 66 types of blades for 110-style and 66-style punch-down blocks, respectively.
   • Cut and Non-Cut Blades: A cut blade not only terminates the wire but also cuts off any excess wire as part of the process. A non-cut blade merely terminates the wire without cutting it.
4. Ergonomic Design:
   • Many punch down tools are designed with an ergonomic handle to ensure comfort and reduce hand strain during prolonged use.
   • Some models come with padded grips or rubberized handles for a better, non-slip grip during use.
5. Durability:
   • Punch down tools are usually made from high-quality steel for the blades and durable plastic for the handle. This construction ensures that they can withstand repeated use without breaking or wearing down.
   • Impact tools are often made with heavy-duty materials to handle the additional force they apply to the connections.

Common Uses:

• Network Cable Termination: The most common use for a punch down tool is for terminating Ethernet cables (Cat5e, Cat6) into patch panels, keystone jacks, or wall plates to set up a network.
• Cable Management: The punch down tool is an essential part of cable management in structured wiring systems, helping to ensure a secure and organized setup.
